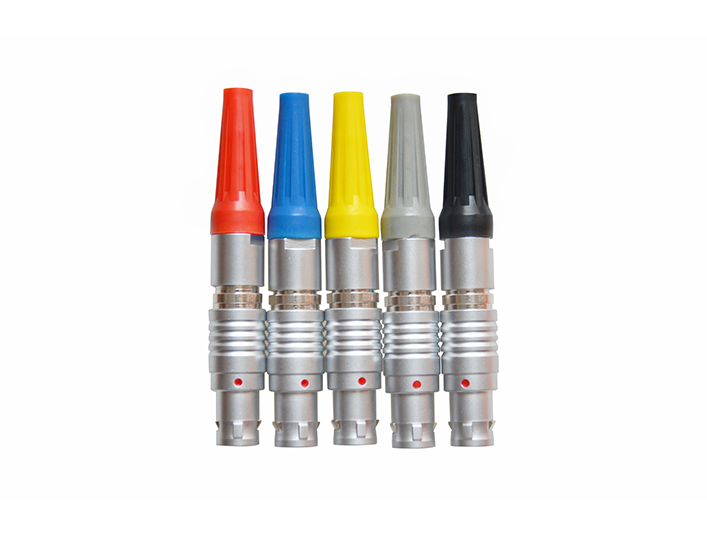

產(chǎn)品名稱：Straight Plug (Jacketed)
Main features:
l Quick push-pull self-locking system,(anti-slip design on the surface of the housing, sound prompting when self-locking).
l Soldering, crimping, printed board connector pins.
l Straight, 90°angled.
l Multiple positioning pin selection avoids intermixing between similar connectors.
l Fully shielded to prevent electromagnetic interference.
l From 2- pin to 32-pin,High density installation saves space.
l Positioning pin system, G is standard positioning pin for connector alignment
Technical specification:
|
Pulling and inserting times |
>5000. |
|
Humidity |
Maximum humidity up to 95% at a temperature of 60° |
|
Temperature |
-45°~+125° |
|
Vibration |
10~20000HZ，15g |
|
Mechanical shock |
100g·6ms |
|
Salt spray corrosion test |
>48h |
|
Protection level |
IP50 |
